UHC CLIP ON FILTER (Canon-C)

OPTOLONG CLIP ON UHC filter for Canon EOS APS-C

(Not compatible with EF-S Lens)

The UHC (Ultra High Contrast) broadband filter is designed to improve the visibility of various deepsky objects. By selectively reducing the transmission of wavelengths of light pollutants, specifically those produced by artificial lightings including mercury vapor lamps, both high & low pressure sodium vapor lights and the unwanted natural light caused by neutral oxygen emission in our atmosphere (i.e. skyglow). Together with the highly transparent in main nebula emission lines at OIII(496nm and 500nm), H-beta (486nm), NII(654nm and 658nm), H-alpha(656nm) as well as SII(672nm), the filter is suitable for enhancing the contrast and details for both visual and photograghic purpose at sub-rural area with heavy light pollution.

Main Use and Performance

Suitable for color CCD cameras and unmodified DSLRs.
UHC with narrower passband provides higher contrast than CLS. Thus it is more suitable for urban environment where you suffer from severe light pollution.
UHC has a substantial red passband and offer superb views for objects like the Orion Nebula (M42).
Light pollution filter do not eliminate the effects of light pollution or increase the object’s brightness. In many cases, they increase the contrast between nebula and night sky, not brightening the nebula.
WARNING: The filters of Optolong are not designed for sun observation. DO NOT LOOK AT THE SUN WITH OPTOLONG FILTER. You would be BLIND if you fail to observe the warning.

Technical Data

    Schott substrate material
    Thickness 2.0 mm (1.25”/2”/36mm/77mm/82mm)                1.0 mm (Clip series)
    Surface Quality: 60/40 (Refer to MIL-O-13830)
    Fine-optically polished to ensure accurate 1/4 wavefront and < 30 seconds parallelism over the both surfaces

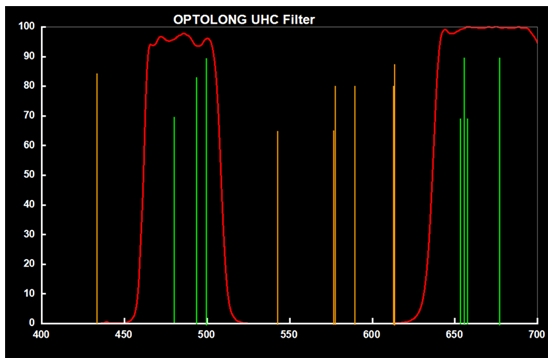

    95% transmission of main nebula emission lines (i.e. Ha 656nm, OIII 496nm&500nm, SII 672nm and H-beta 486nm).
    0.1% transmission of off-band, specifically the major emission lines of artificial light pollution (i.e. Na 589nm, Hg 435nm and 578nm). Transmission of 0.1% is equivalent to OD3(Optical Density), and a high optical density value indicates very low transmission, and low optical density indicates high transmission.
