LED SOLAR LIGHTING SYSTEM

LED SOLAR LIGHTING SYSTEM

LED/12VSLS

This low cost portable system has been designed to bring the benefits of technology to the rural and urban home, where the luxury of Grid electric power is not available. The unit provides adequate lighting and convenience at a fraction of other systems on the market.

Installation is easy as all components are pre-wired.
Simply unplug the PV panel at the top of the control box, place the solar panel on a north-facing surface (i.e. the roof or the wall) at 30 degrees, carefully feed the wire through the roof to the control box and then plug in. Place the control panel at a convenient location in the house and position the lights in the required locations and there you have instant solar-powered lighting.

A single control box provides:

• Switching,
• 12VDC sealed Battery
• Protection from short circuits
• Protection from over discharge
• Protection from over charging
• LED status indicator

Fully charged battery will provide up to 20 hrs of lighting by 5 LED units.

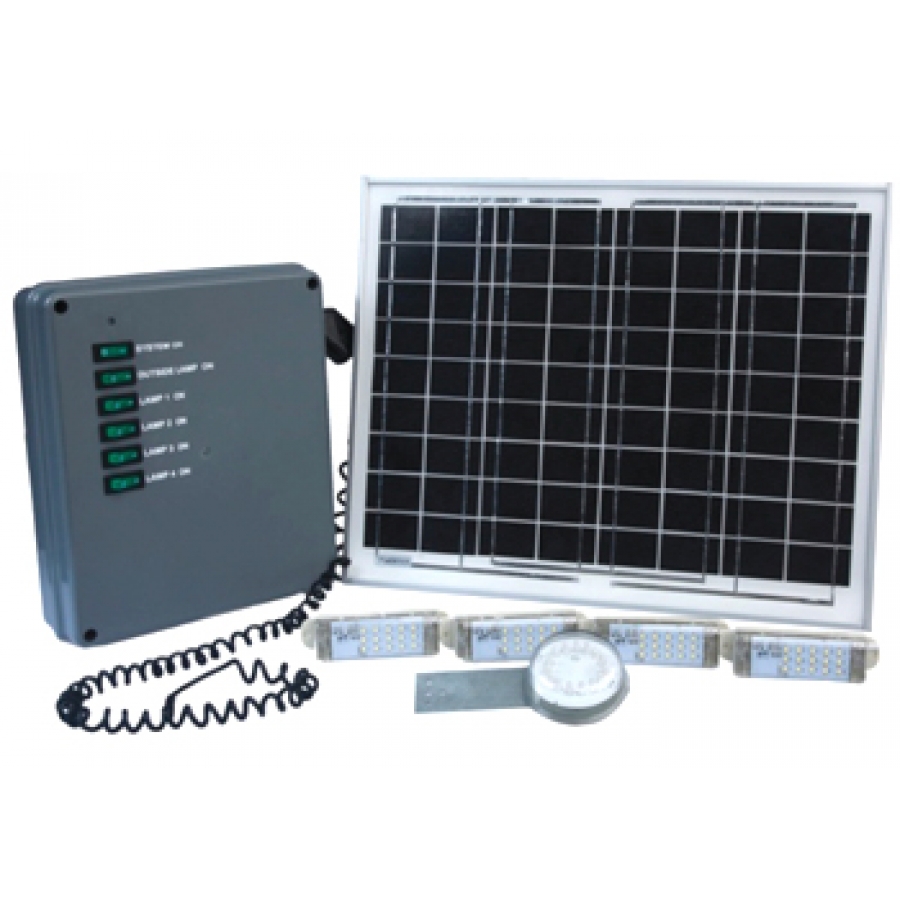

System includes:

5 x regulated LED lamps

1 x control box with 7.2 hrs sealed battery and 12 VDC accessory output (for charging the cell phone or to power up any 12V portable device)

1 x 20W / 12V Solar panel
