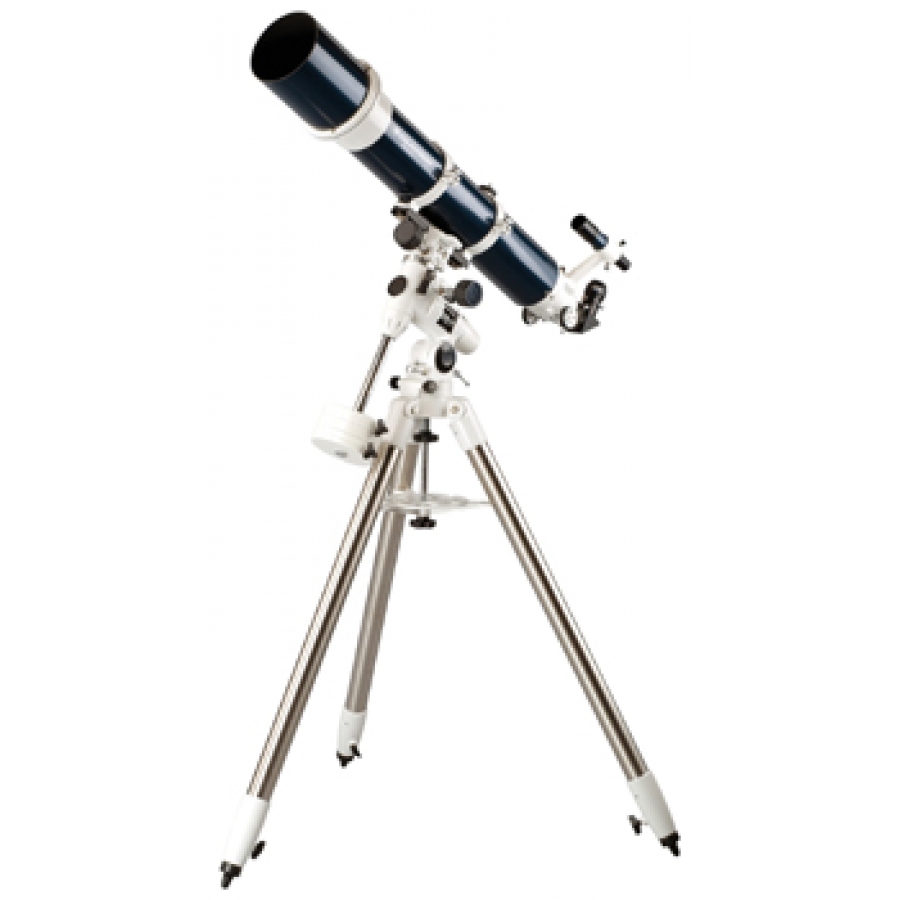

CELESTRON OMNI XLT 120 REFRACTOR TELESCOPE

CELESTRON OMNI XLT 120 REFRACTOR TELESCOPE

#21090

Omni XLT series features the stable platform of the CG-4 mount and high quality optics.  Using aspheric shaping technology in conjunction with hand-figuring the optics, the Omni XLT presents an image with virtually no spherical aberration.  We also added our famous StarBright XLT coating system to further enhance light transmission.

Specifications:

Optical Design                                           Refractor
Aperture (mm)                                           120 mm (4.72 in)
Focal Length (mm)                                   1000 mm (39 in)
Focal Ratio                                                 8.33
Eyepiece 1 (mm)                                       25 mm (0.98 in)
Magnification 1                                          40 x
Finderscope                                               6x30
Mount                                                           Omni CG-4 Equatorial
Tripod Legs                                                1.75" Stainless
Weight (lbs)                                                46 lbs (21 kg)
Highest Useful Magnification                 283 x
Lowest Useful Magnification                  17 x
Limiting Stellar Magnitude                       12.9
Resolution (Rayleigh)                              1.16 arc seconds
Resolution (Dawes)                                 0.97 arc seconds
Light Gathering Power                             294 x
Angular Field of View (deg)                     1.25 °
Linear Field of View (@1000 yds)          66 ft (20 m)
Optical Coatings                                        StarBright XLT
Optical Tube Length                                 40 in (1016 mm)
Optical Tube Weight                                 12.5 lbs (5.67 kg)
EQ Mount Weight                                       21 lbs (9.53 kg)
Tripod Weight                                             12.5 lbs (5.67 kg)
Counterweights                                         7 lbs (3.2 kg) and 4 lbs (1.8 kg)
